Bright Bars
At Suresh Steels, production of Bright Bars is a cherished speciality,

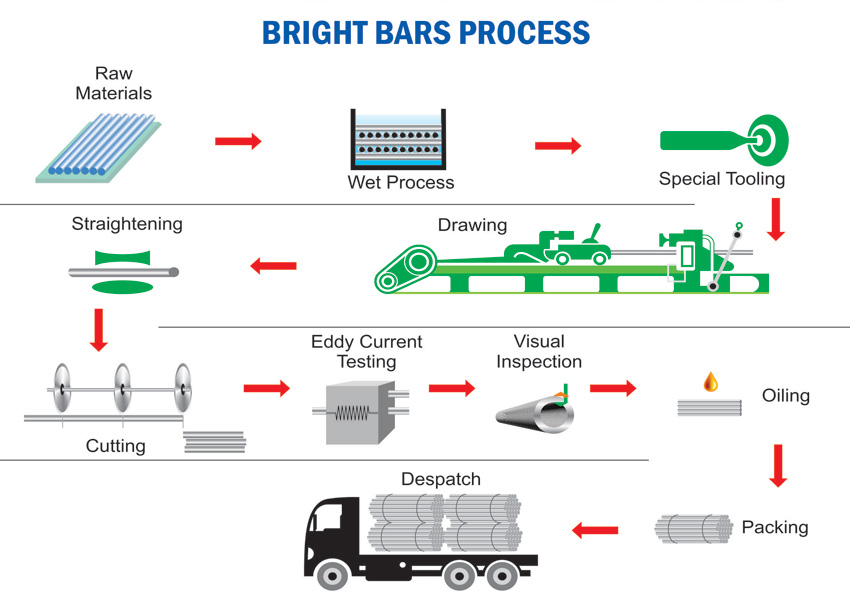

- Hot rolled bars are pickled and drawn through a Tungsten Carbide Die.
- For special applications, the Hot rolled bars are subjected to a Turning machine to attain a specific size.
- The final product is called ‘Cold Drawn Bright Bar’ as the production process does not require external heating.
- Commonly produced shapes include Round, Rectangular, Hexagon, Square or any other Shape as per requirement.
Bright Bars are preferred over traditional hot rolled bars because of,
- Brighter, clearer and defect free surfaces
- Higher, accurate tolerance levels
These qualities allow the bar to be utilised in high performance, maximum stress conditions.
BRIGHT BARS AND FLAT PRODUCTS

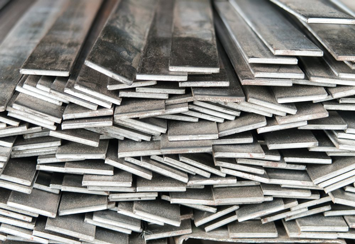

FLAT BAR

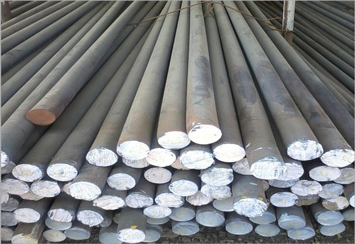

ROUND BAR

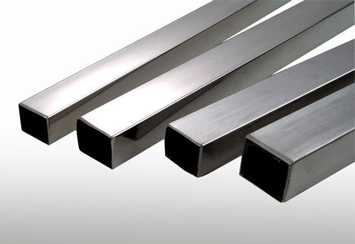

SQUARE BAR
Bright Bars and Flats Product Range
| Flat | |
|---|---|
| SI.NO | Sizes |
| 1 | 20mm X 6mm |
| 2 | 24mm X 8mm |
| 3 | 25mm X 6mm |
| 4 | 25mm X 8mm |
| 5 | 25.4mm X 12.7mm |
| 6 | 30mm X 5mm |
| 7 | 30mm X 8mm |
| 8 | 32 mmX 6mm |
| 9 | 32mm X 8mm |
| 10 | 37mm X 9mm |
| 11 | 40mm X 6mm |
| 12 | 40mm X 8mm |
| 13 | 40mm X 10mm |
| 14 | 50mm X 6mm |
| 15 | 50mm X 8mm |
| 16 | 50mm X 10mm |
| 17 | 58mm X 11.8mm |
| Hexogon Bars | |
| 1 | 12.5mm |
| 2 | 14mm |
| 3 | 12.4mm |
| 4 | 16mm |
| Square Bars | |
| 1 | 8mm X 8mm |
| 2 | 10mm X 10mm |
| 3 | 12mm X 12mm |
| 4 | 14mm X 14mm |
| 5 | 16mm X 16mm |
| 6 | 25mm X 25mm |
| 7 | 19mm X 19mm |
